Linear Scale
LINEAR SCALE
Potentiometer

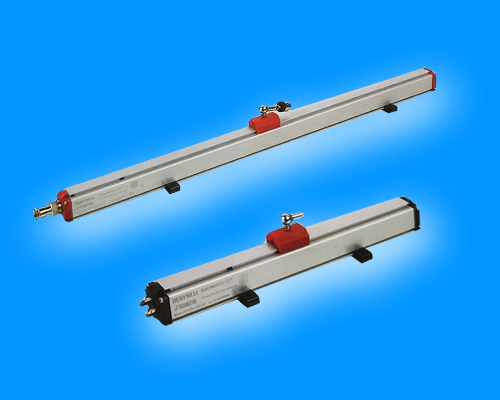

Overview Excellent structure with aluminium casing, easy, to install.
ADVANTAGES
Linear measurement; non-contact measurement, accurate and reliable; high repeat precision.
HH Series
| ITEMS | Specification |
| Signal output type | CANopen |
| Systemic resolution | 5um |
| Hyscteresis | <5um/± 1 digit l |
| Degree of nonlinearity | <± 0.02% F.S (minimum ±50um) |
| Repeated Accurancy | <± 0.001%F.S |
| Supply voltage | 12-30V DC |
| Update frequency | 0.5ms (stroke < 500mm) , 1ms (stroke < 2400mm), 2ms(stroke<4800mm) |
| Current Consumption | <150mA |
| Measurement range | 50-400mm |
| Temperature drift factor | (6mm+5PPM*L)/*C |
| OVP(Over Voltage Protection) | Transzorb protection diode |
| Polarity reverse protection | Yes |
| Insulation grade | 500V DC (housing earth) |
| Protection grade | IP67 |
EH Series
| ITEMS | Specification |
| Signal output type | Analog output |
| Output Voltage | 0-10V/10-0V |
| Systemic resolution | < 0.1mV |
| Maximum Current | 5mA |
| Hysteresis | < 4um |
| Degree of nonlinearity | <±0.01%F.,(minimum ±50um) |
| Repeated accuracy | <±0.001%F.S, |
| Supply Voltage | 15-30V DC |
| Update Frequency | 0.5ms (stroke < 500mm),1ms(stroke < 2400mm),2ms(stroke <4800mm) |
| Current consumption | <150mA |
| Measurement range | 50-4000mm |
| Temperature drift factor | Transzorb protection diode |
| OVP (over voltage protection) | Yes |
| Polarity Reverse protection | 500V DC (housing earth) |
| Insulation grade | IP67 |
PRESSURE TRANSDUCER

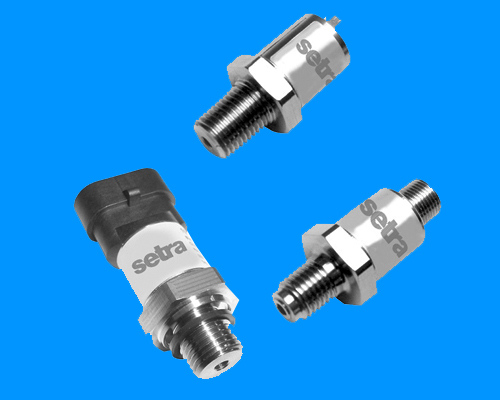

The AST3300 series pressure transducers, set a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure.
The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 BSP M pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings, welds or organics exposed to the pressure media. The durability is excellent.
